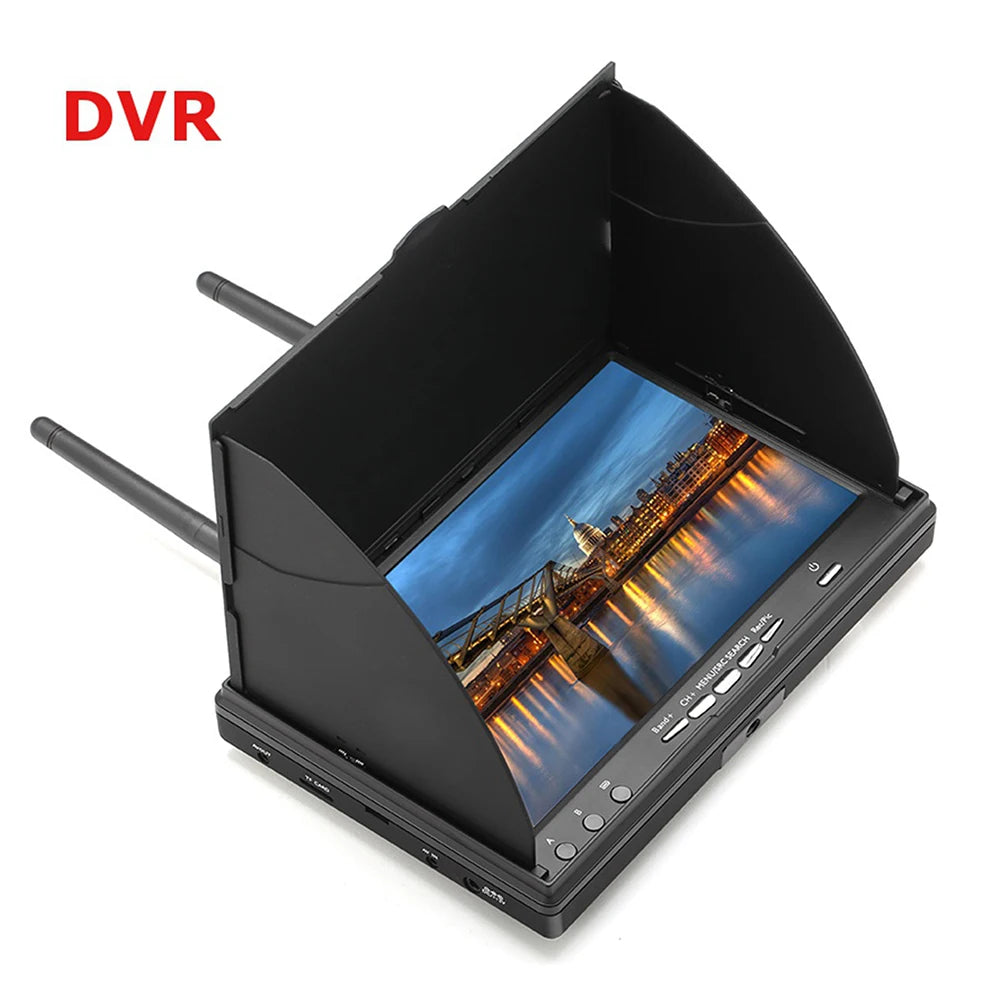

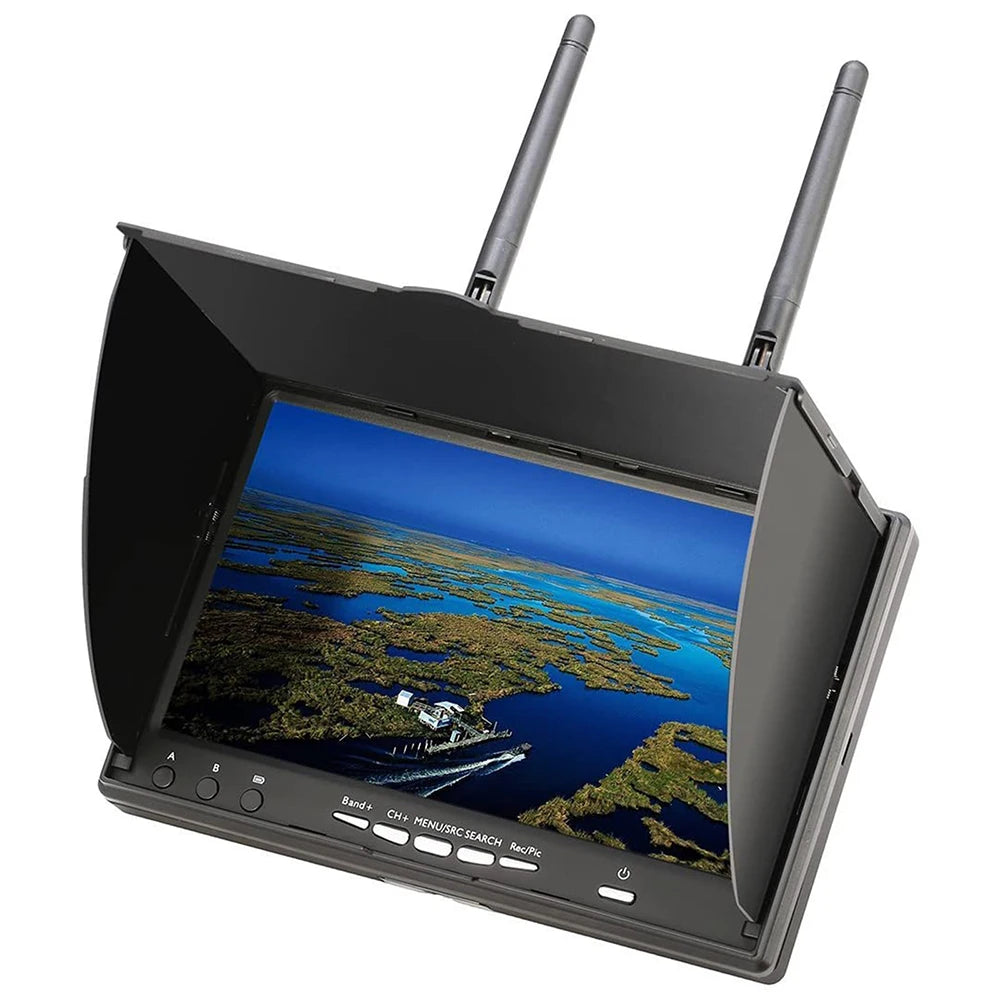

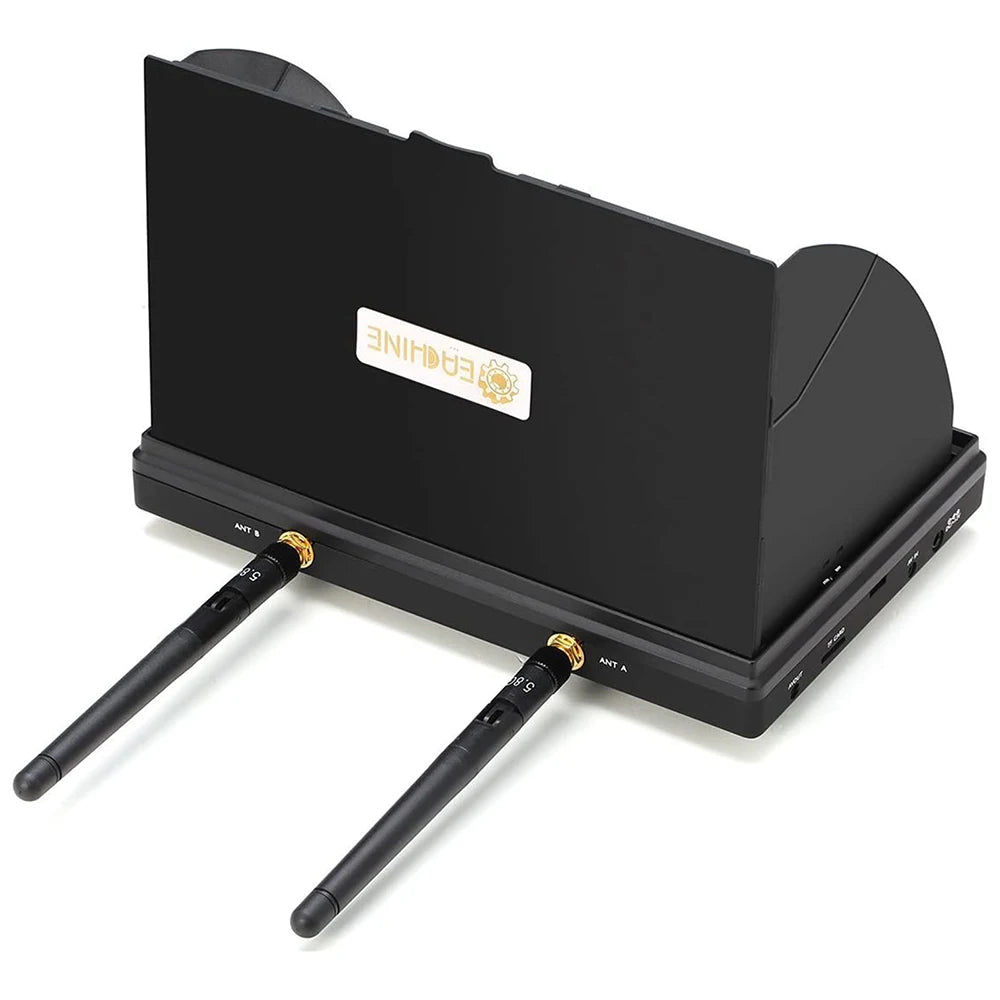

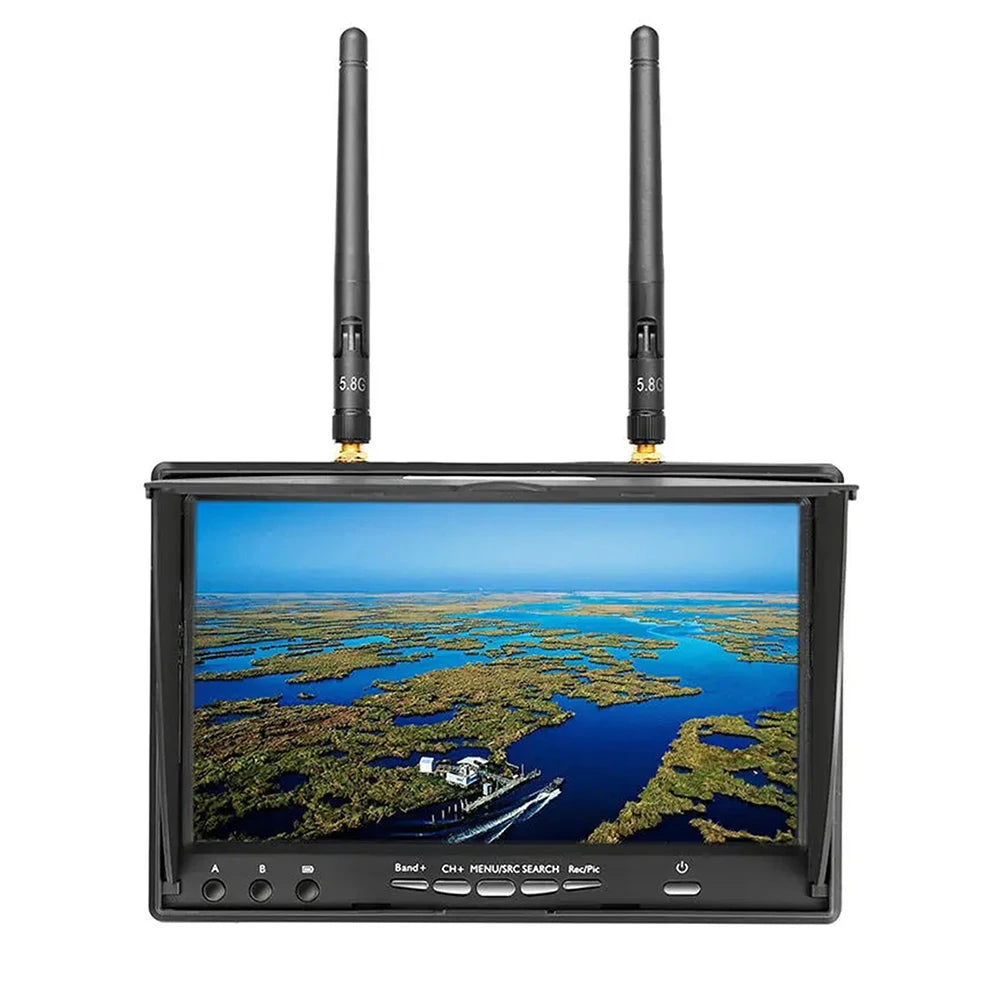

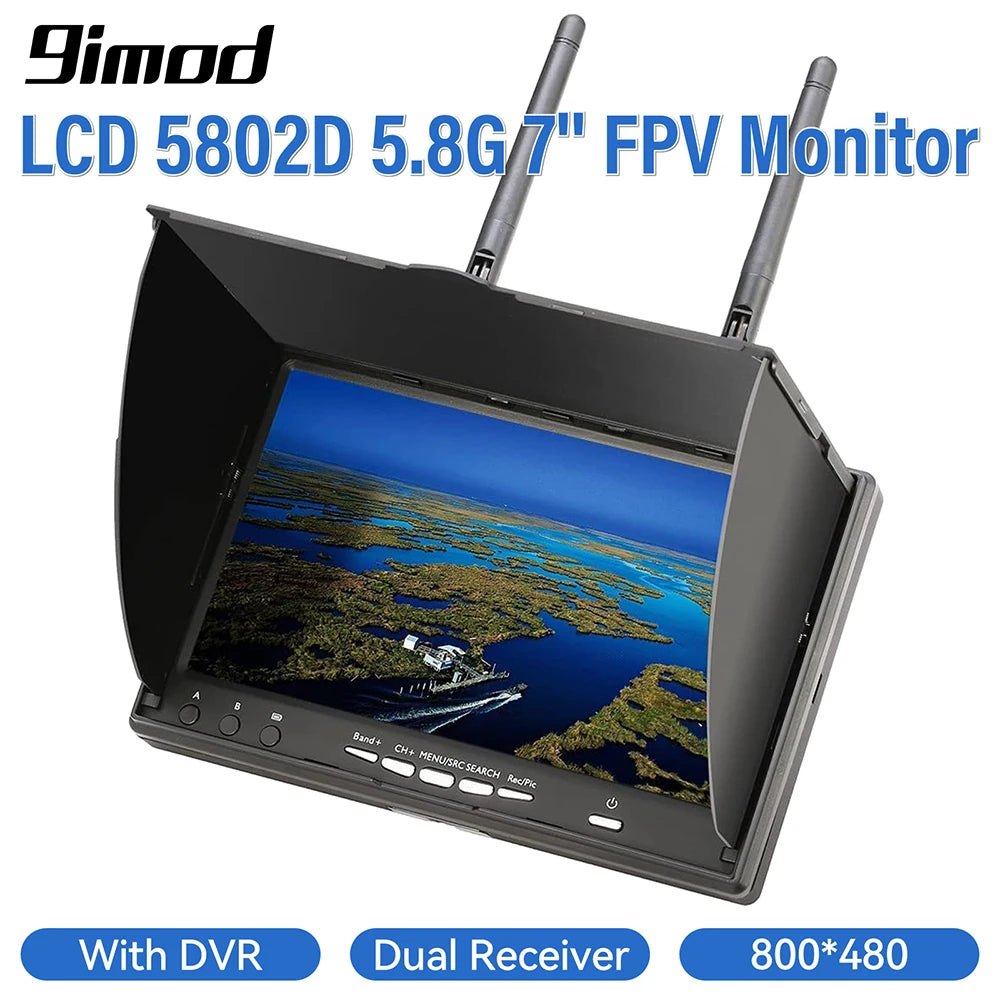

9IMOD LCD5802D FPV Monitor with DVR 5.8G 40CH 7 Inch LCD Screen Monitor 800x480 Dual Diversity Receiver with Battery and Sunshade Hood for FPV Drone Quadcopter RC Multicopter Part

Features:
With DVR function
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Dual buffered AV outputs, Built-in 2CH 5.8Ghz AV output and 1CH AV input
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V, easy to carry and outdoor use
A key to automatic signal search,Simple operation
Support Chinese and English menu
Work status OSD display: RSSI indication ; Battery indicator;Channel indication. Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time

Description:
This LCD Screen FPV receiver monitor with stable performance and clear image quality. Built-in dual receiver automatically for best reception automatic antenna switching. Small size and lightweight, a simple and effective accessory for FPV drone.

Specifications:
Item Name: LCD5802D Monitor
Format: JPEG, AVI
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)

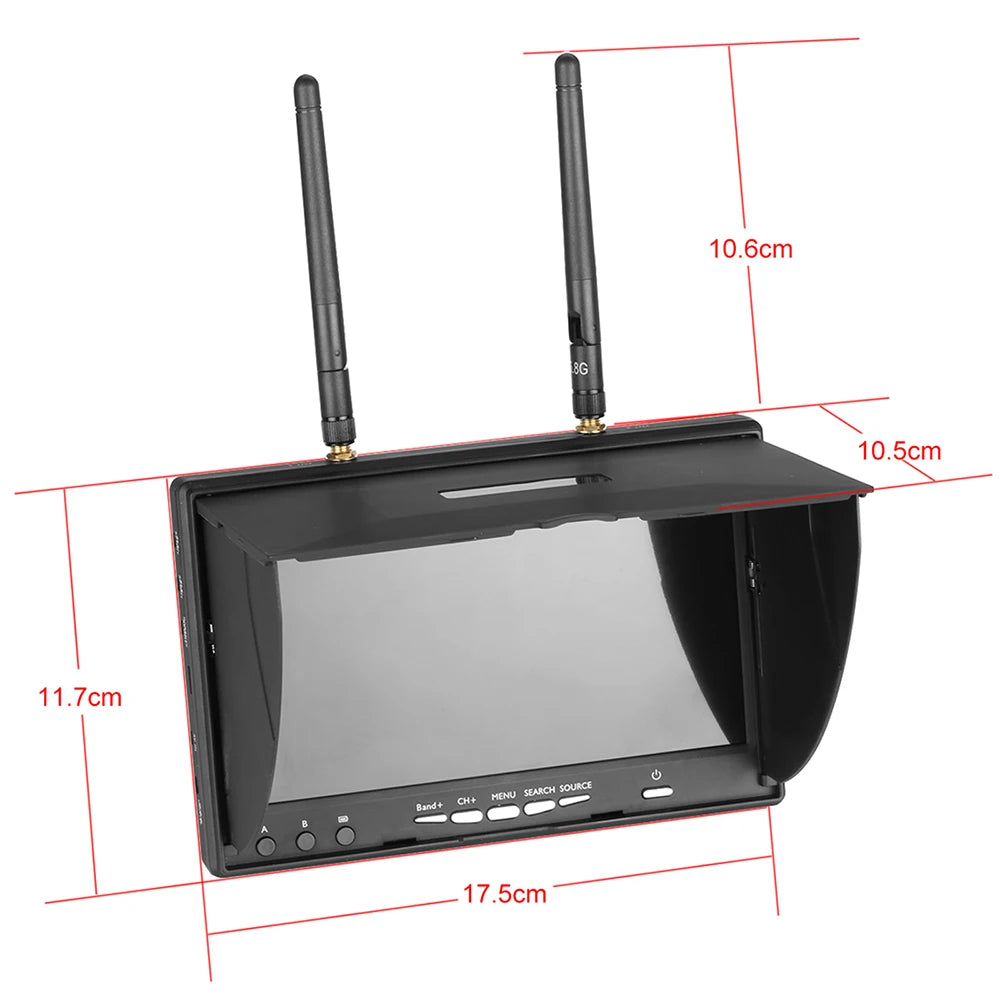

Size: 180x120x50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)
Support up to 32G , C10 SD Card.

Package Includes:
1 x FPV Receiver Monitor
1 x Adapter
2 x Antenna
1 x Audio Cable
1 x Cable
1 x Wiping Cloth
1 x Manual

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
