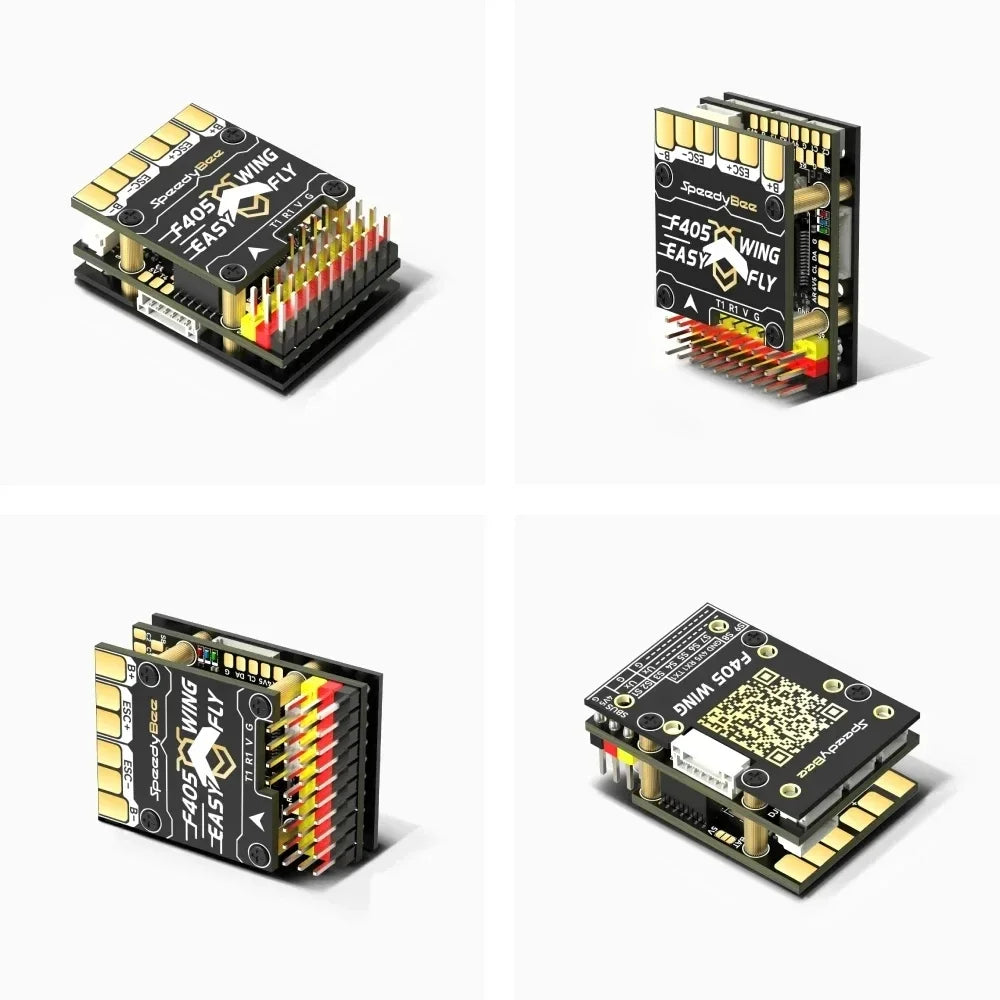

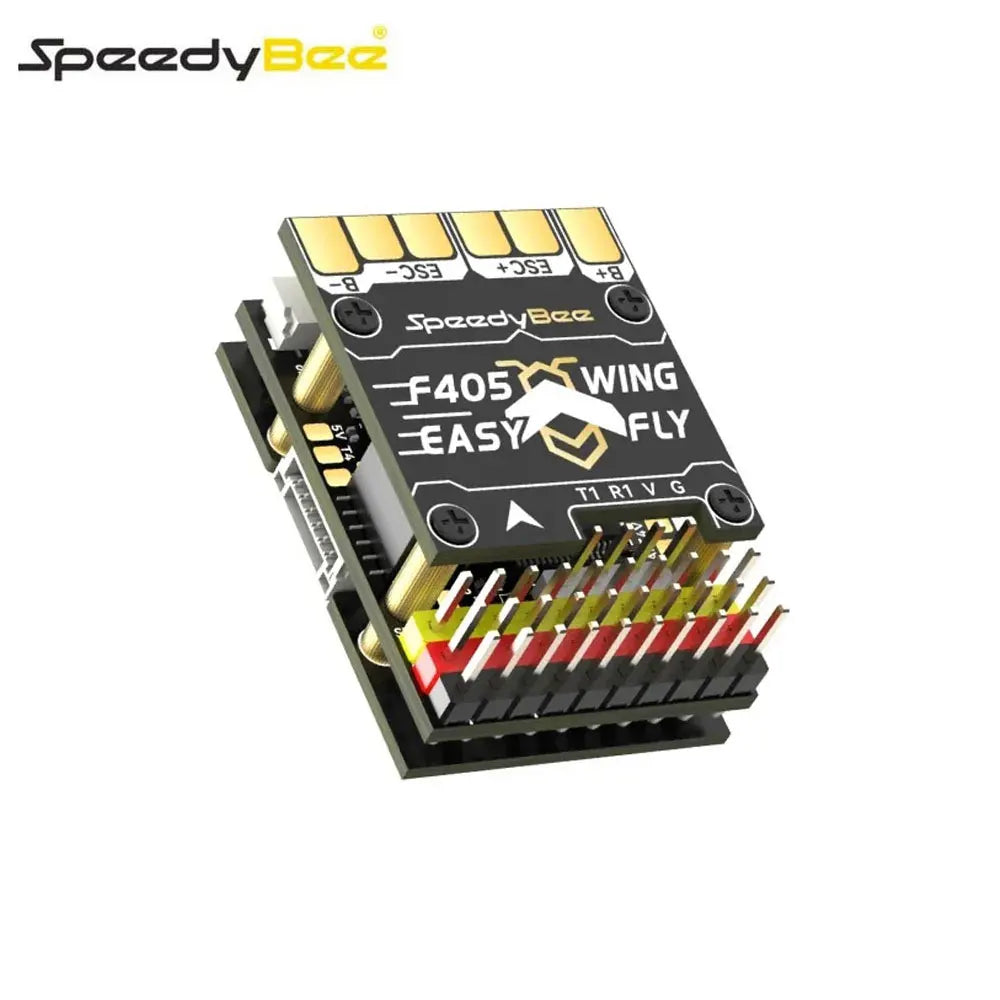

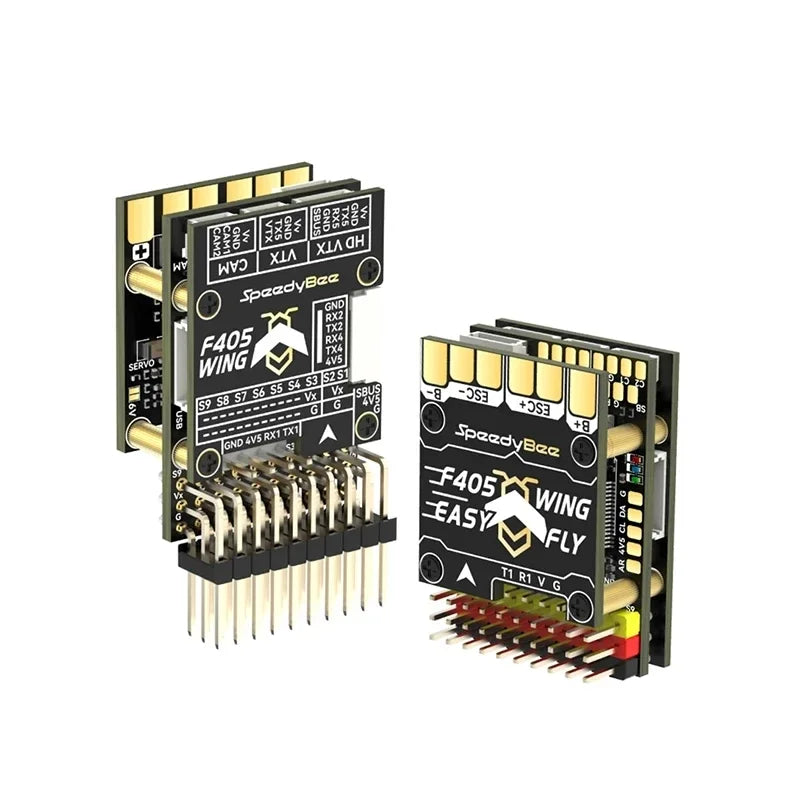

SpeedyBee F405 WING MINI Fixed Wing Flight Controller
SpeedyBee F405 WING MINI Fixed Wing Flight Controller
Vestibulum dapibus ultrices arcu, id varius mauris viverra ac. Aliquam erat volutpat. Pellentesque commodo ut elit at gravida.
Regular price
$68.54
Sale price
$68.54
Regular price
$0.00
Unit price
per
Tax included.
Couldn't load pickup availability
Description
Shipping Information
Reviews
Description
SPECIFICATIONS
Brand Name: HawkSpeed
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: SpeedyBee F405 WING MINI Fixed Wing Flight Controller
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: F405 WING MINI
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: AN
Technical parameters: KV1100
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate

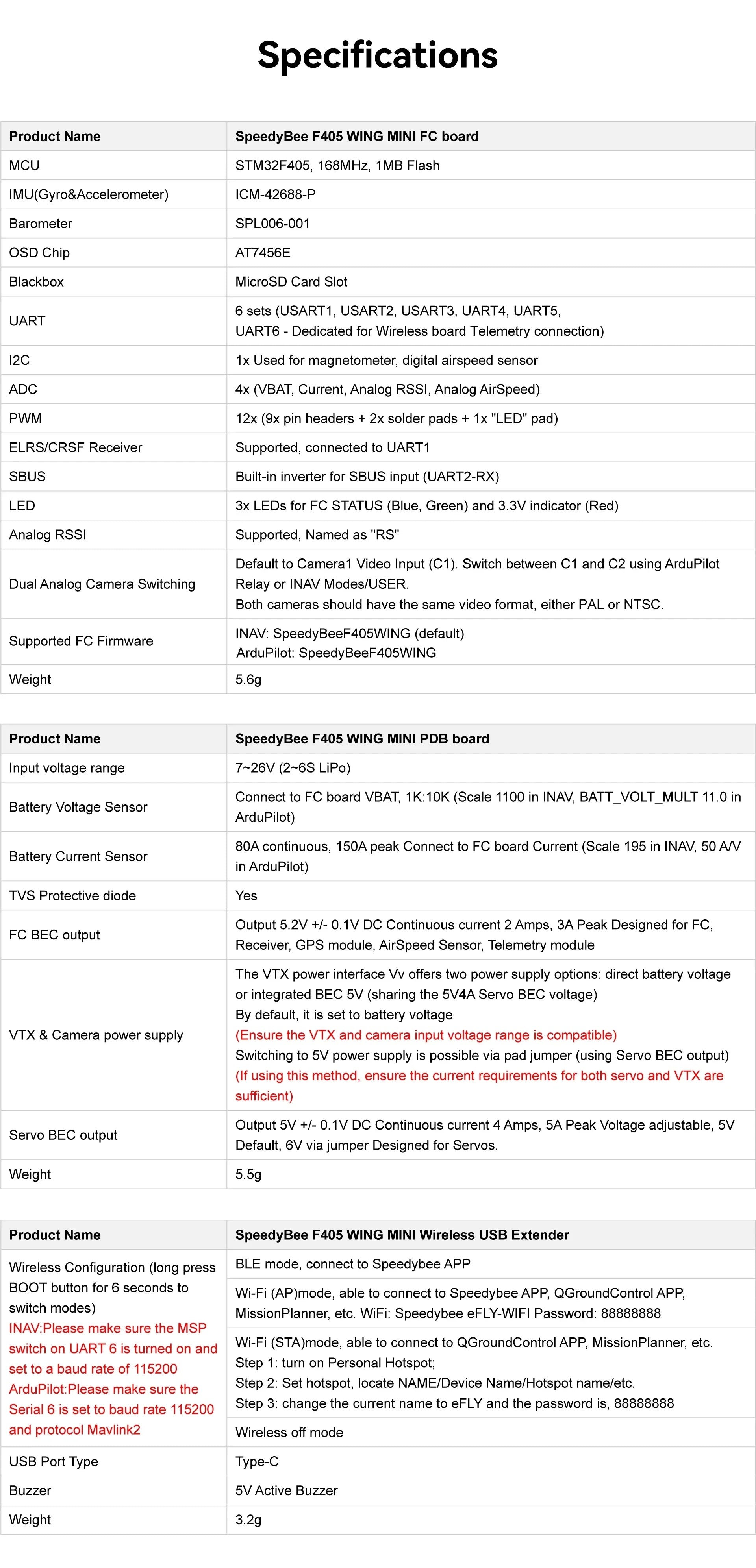

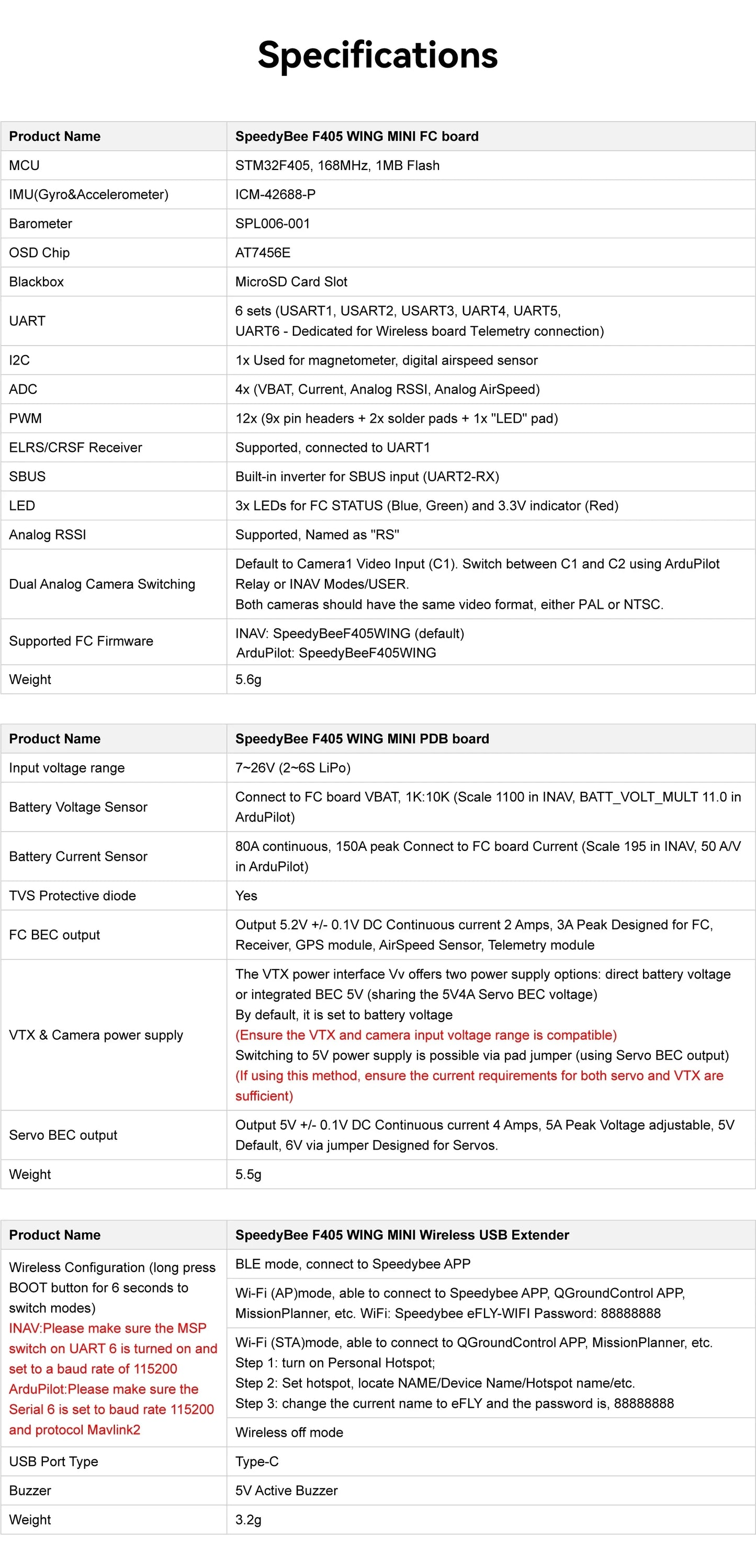

Specifications
Product Name |
SpeedyBee F405 WING MINI FC board |
MCU |
STM32F405, 168MHz, 1MB Flash |
IMU(Gyro&Accelerometer) |
ICM-42688-P |
Barometer |
SPL006-001 |
OSD Chip |
AT7456E |
Blackbox |
MicroSD Card Slot |

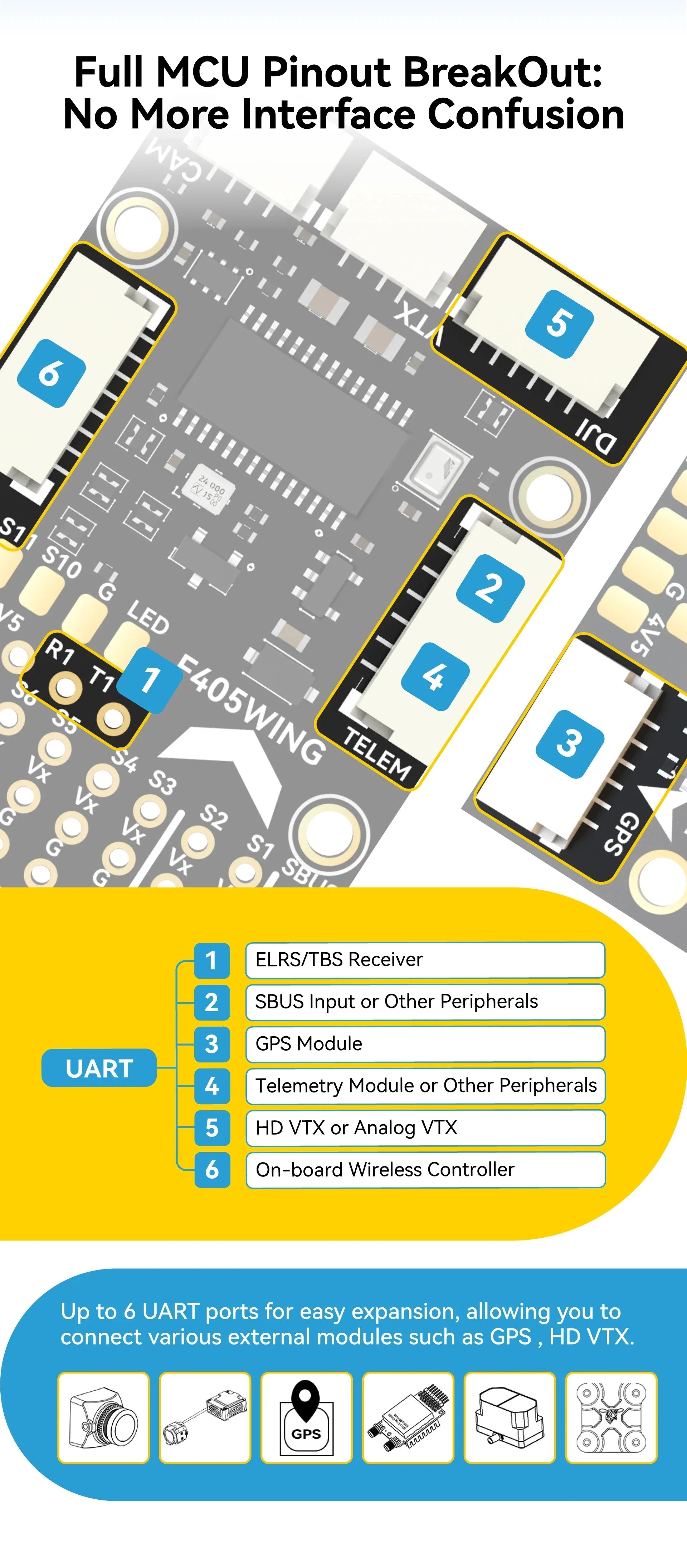

UART |
6 sets (USART1, USART2, USART3, UART4, UART5, |
I2C |
1x Used for magnetometer, digital airspeed sensor |
ADC |
4x (VBAT, Current, Analog RSSI, Analog AirSpeed) |

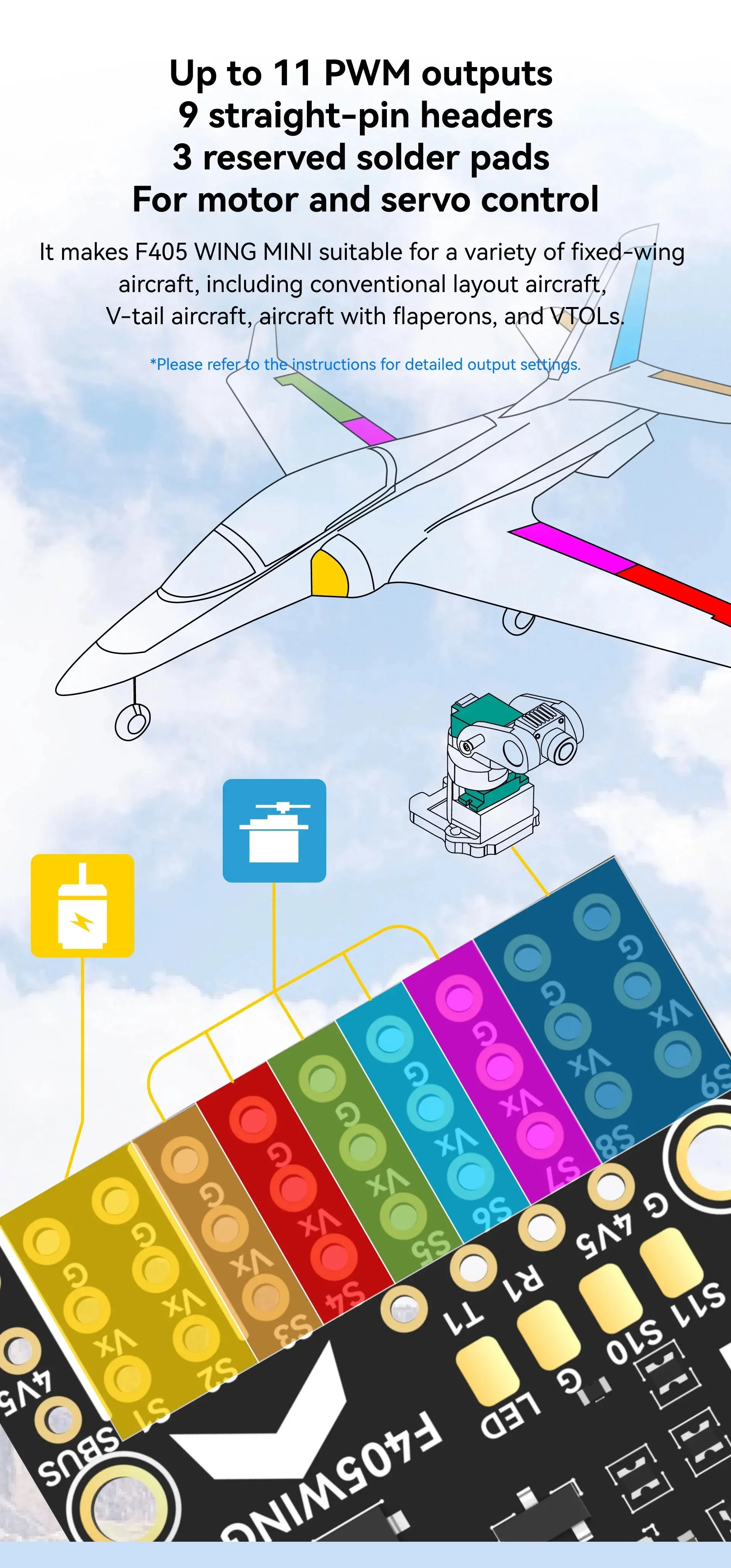

PWM |
12x (9x pin headers + 2x solder pads + 1x "LED" pad) |
ELRS/CRSF Receiver |
Supported, connected to UART1 |
SBUS |
Built-in inverter for SBUS input (UART2-RX) |
LED |
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red) |
Analog RSSI |
Supported, Named as "RS" |
Dual Analog Camera Switching |
Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. |
Supported FC Firmware |
INAV: SpeedyBeeF405WING (default) |
Weight |
5.6g |

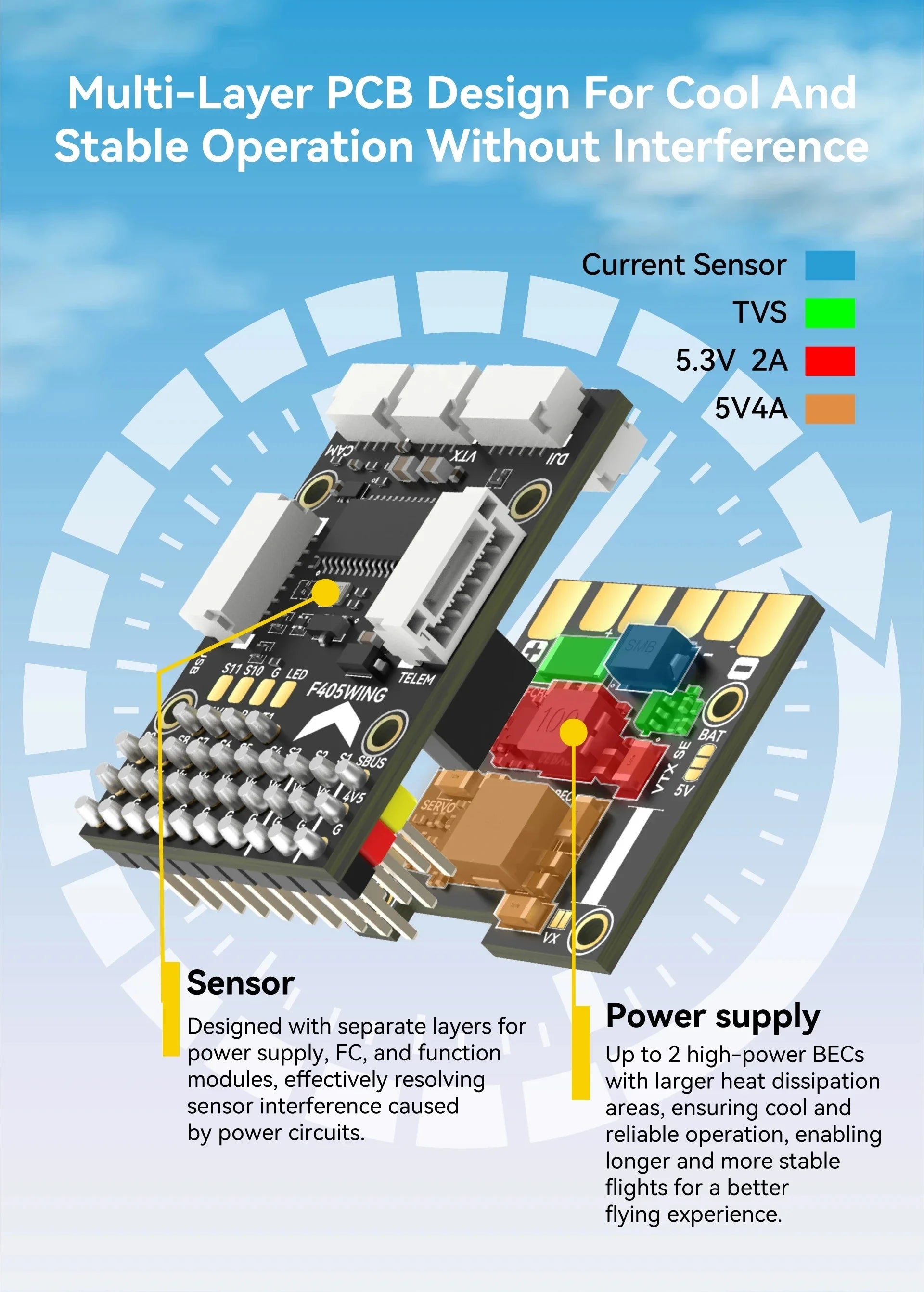

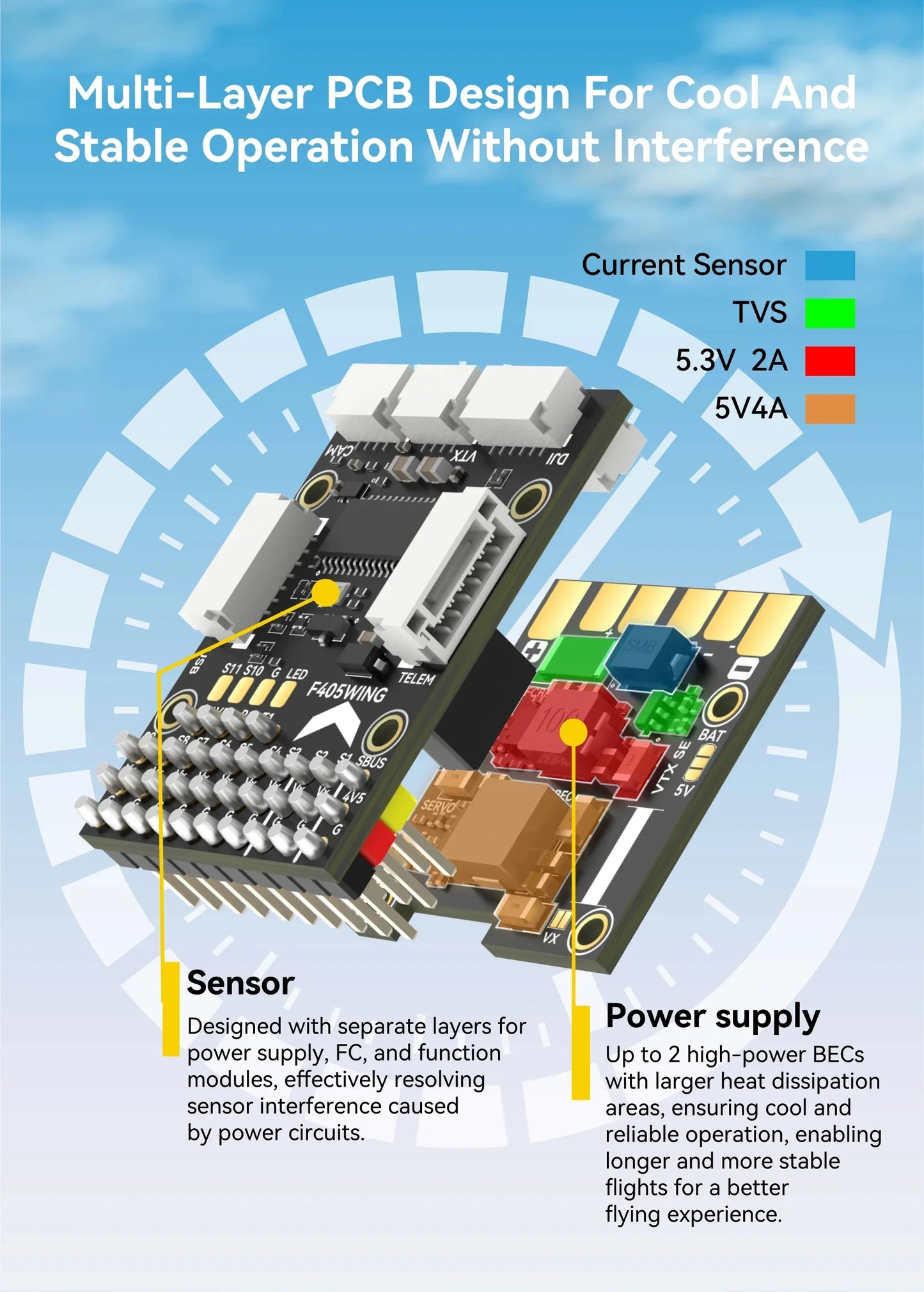

Product Name |
SpeedyBee F405 WING MINI PDB board |
Input voltage range |
7~26V (2~6S LiPo) |
Battery Voltage Sensor |
Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) |
Battery Current Sensor |
80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot) |
TVS Protective diode |
Yes |
FC BEC output |
Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module |
VTX & Camera power supply |
The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage) |
Servo BEC output |
Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos. |
Weight |
5.5g |

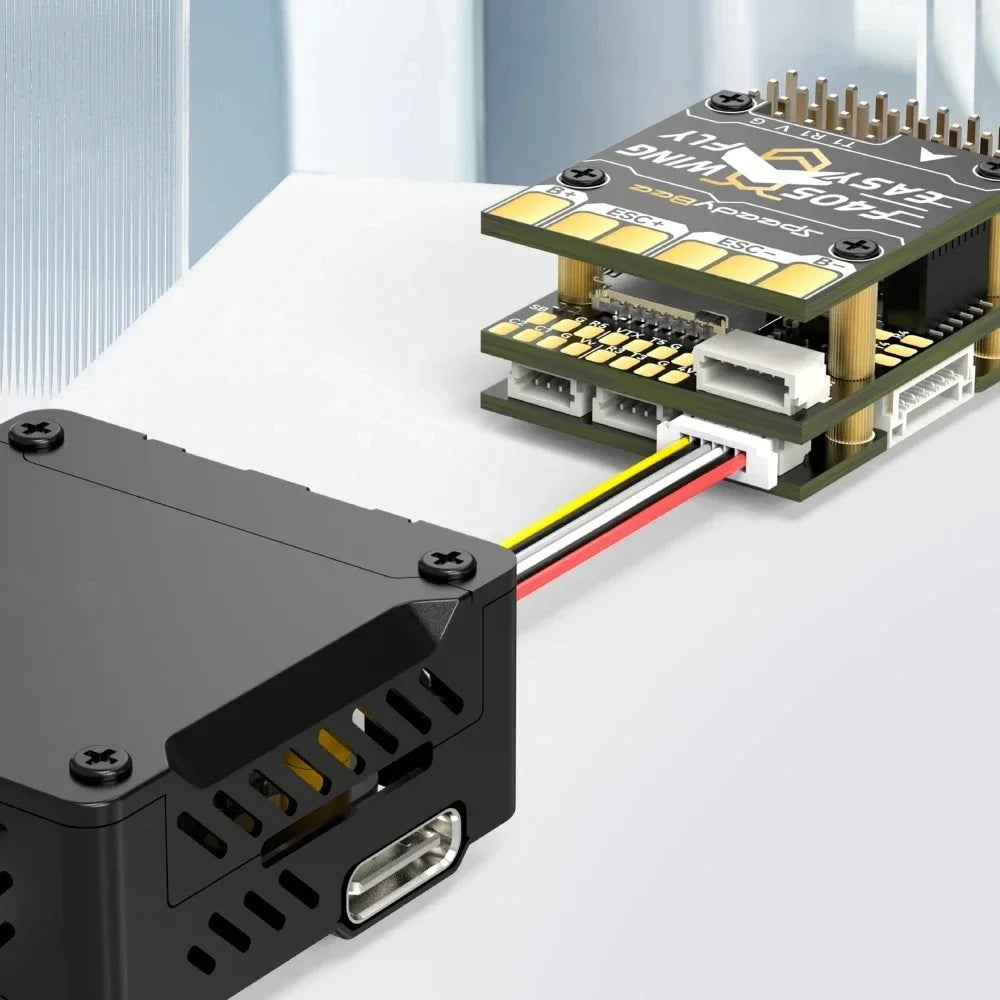

Product Name |
SpeedyBee F405 WING MINI Wireless USB Extender |
Wireless Configuration (long press BOOT button for 6 seconds to switch modes) |
BLE mode, connect to Speedybee APP |
Wi-Fi (AP)mode, able to connect to Speedybee APP, QGroundControl APP, MissionPlanner, etc. WiFi: SpeedybeeĀ eFLY-WIFI Password: 88888888 | |
Wi-Fi (STA)mode, able to connect to QGroundControl APP, MissionPlanner, etc. | |
Wireless off mode | |
USB Port Type |
Type-C |
Buzzer |
5V Active Buzzer |
Weight |
3.2g |
